Description

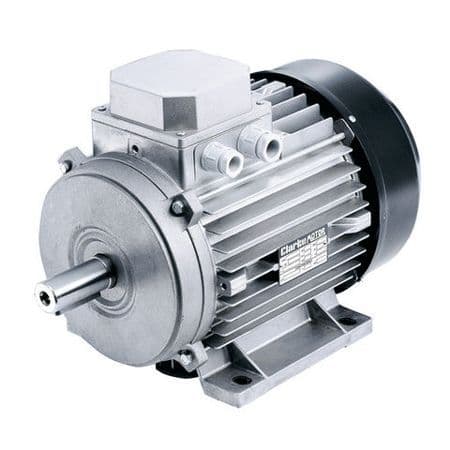

Clarke’s range of single phase electric motors are great value for money. This 1.5hp motor is suited to a variety of applications, this totally enclosed fan cooled 230V motor provides reliable long term service.

Key Features:

– Manufactured to the latest electrical and mechanical standards
– Motor features totally enclosed fan ventilated cage pattern metric type, continuously rated for reliable long term service
– Standard Keyway shaft
– Foot Mounting (B3)
– Capacitor start & run
– Aluminium frame and rotor
– Precision balanced rotor for vibration-free operation
– Double shielded self-lubricating radial ball bearings
– Starter windings have Class F insulation and are impregnated with Class H resin
– Pole Speed: 4 (1500) RPM
– Frame Size: 90 S
– Shaft Diameter: 24mm
– Starter Required: 6.3-10 Amp
